The Gent Loudspeaker was the studio’s first hi-fi system built entirely from scratch. It was made for a junior-year metals class at the Rhode Island School of Design, with almost no prior knowledge of hi-fi and only a couple of months of TIG welding experience.

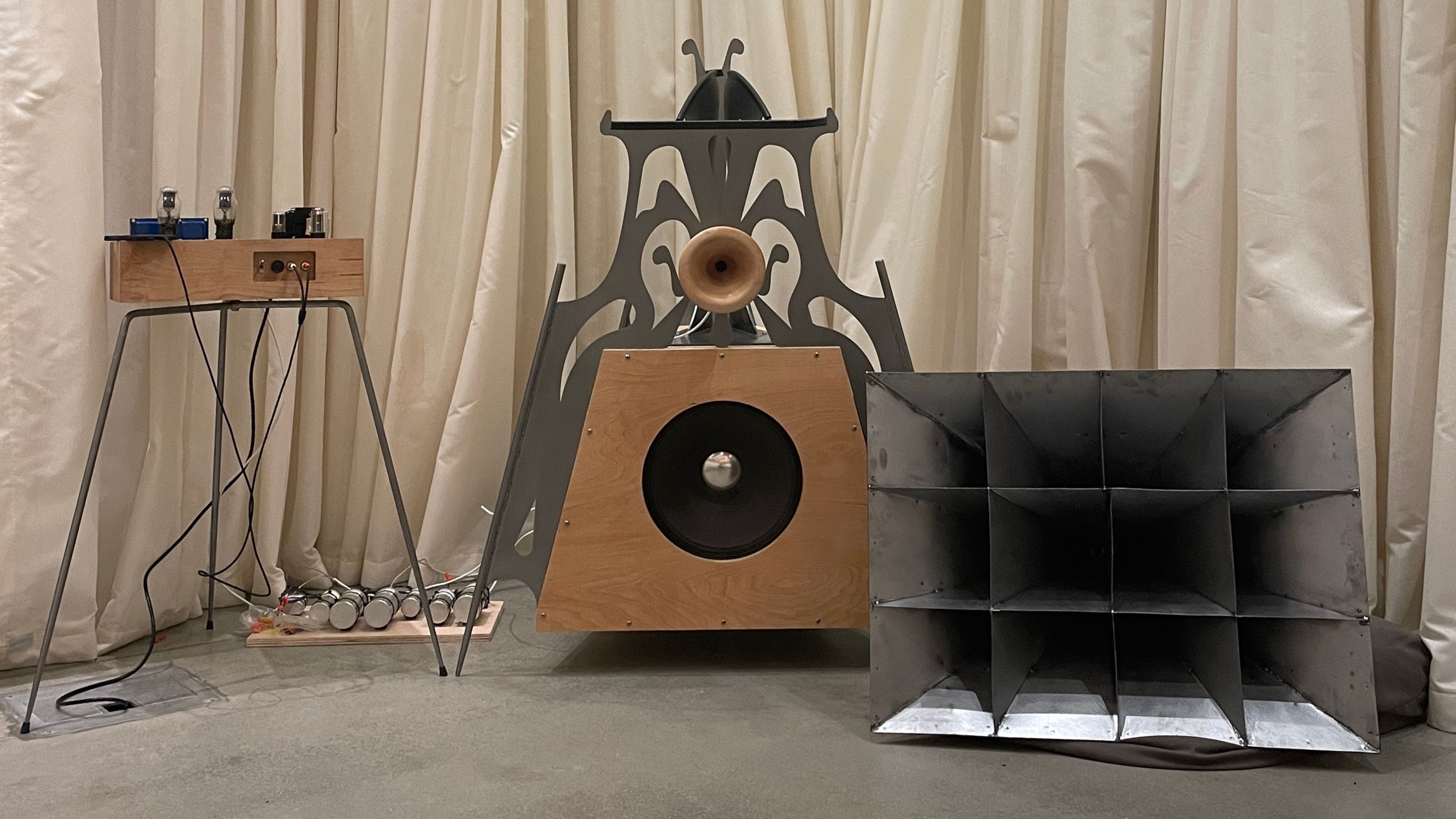

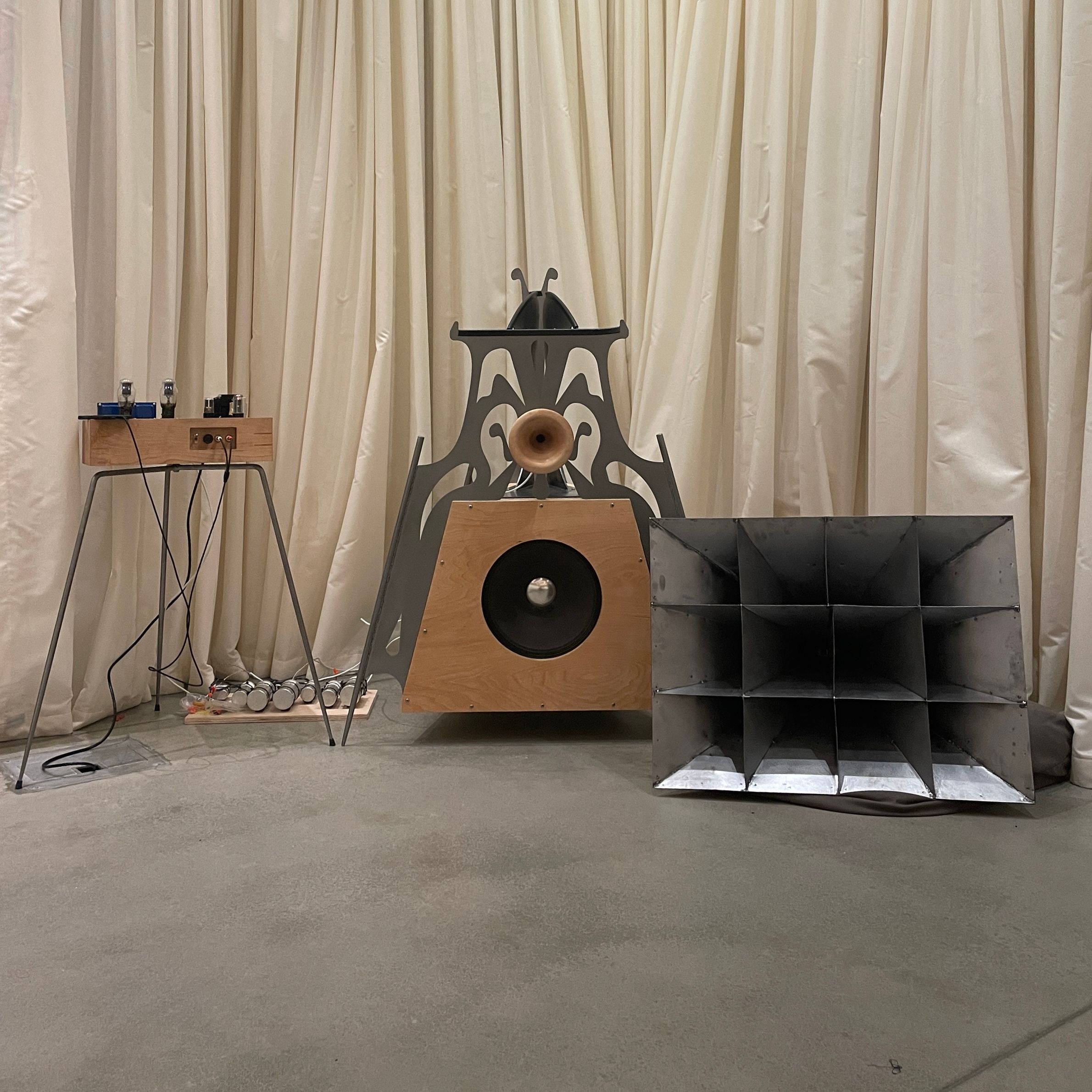

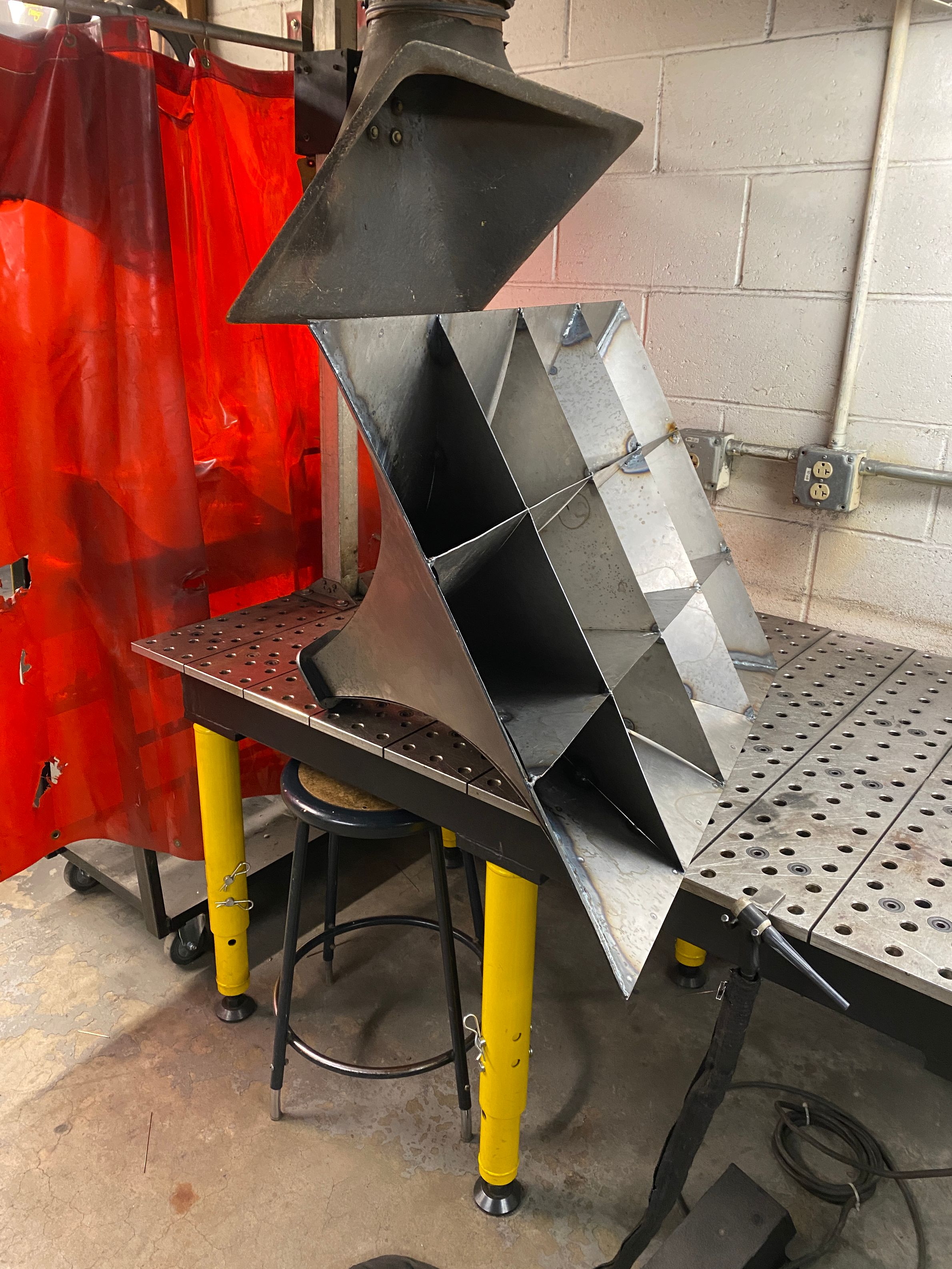

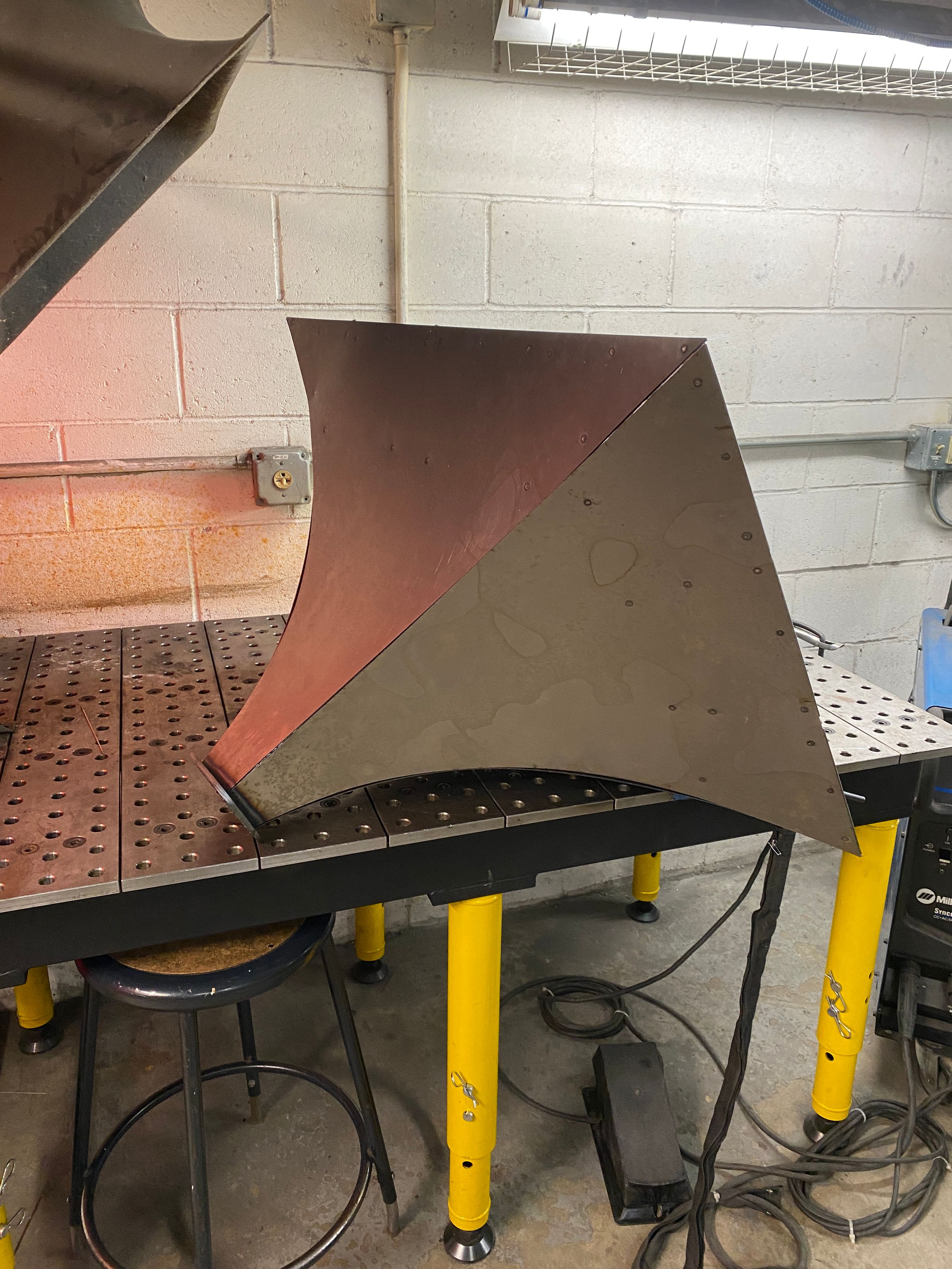

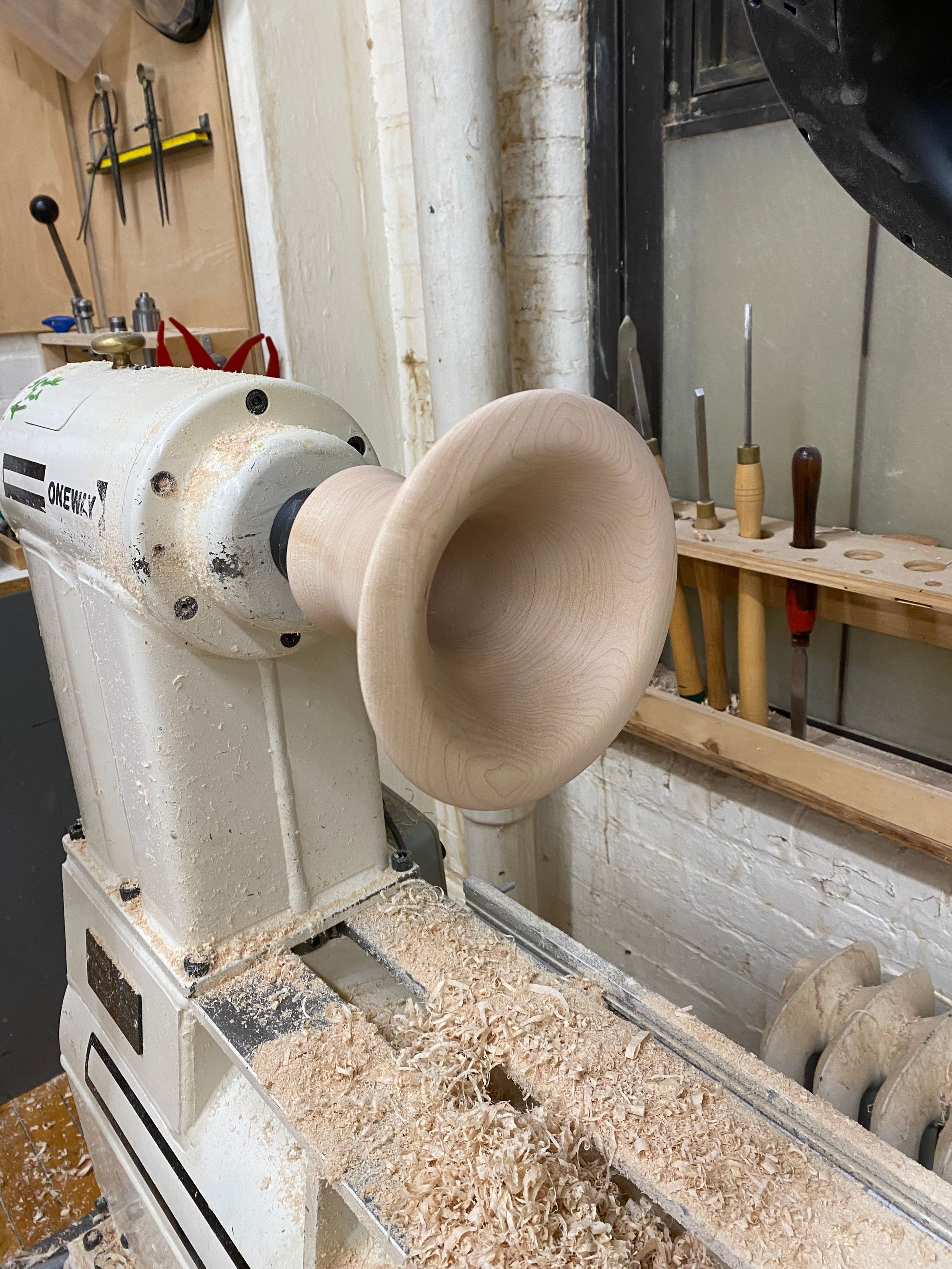

Developed under the advice of Jeffrey W. Jackson, Gent is a 3-way mono system. It was powered by a modified JE Labs 2A3 amplifier, housed in a maple chassis with vintage hardware on a tripedal steel stand. The subwoofer used a ported cabinet with an Altec 421. The tweeter used a LeCleac’h flare of Jeffrey’s design, driven by a Radian 475Pb. The midrange horn was an attempt at replicating a Western Electric 24A, also driven by a Radian 475Pb. Jeffrey designed the passive crossover.
The 24A replica proved too heavy to mount securely atop the loudspeaker as designed, so it was placed on the floor, angled upward. The compromise did, at least, improve time alignment slightly.
Process photos and videos from the final critique are the only documentation of the system. It had many flaws and was eventually taken apart to reuse the components. Still, the project was invaluable: a deep dive into unfamiliar territory that began the studio’s pursuit of designing and fabricating hi-fi gear professionally.
